PVC 電話配件

產品規格說明:

PVC Material (EIKO) , Low virulence

Color: Can be custom-manufactured in all colors.

          (special colors: Translucent)

Insulation: Polyester elastmer , Polypropylene Polyethylene.

Conductor : Copper wire , /tinsel wire , Alloy wire.

Electrical characteristic.

Conductor Resistance <0.2ohm/M (copper Wire)

                                   <1.48ohm/M (tinsel Wire)

Insulation Resistance : > 100M ohm

Dielectric Strength: >DC500V

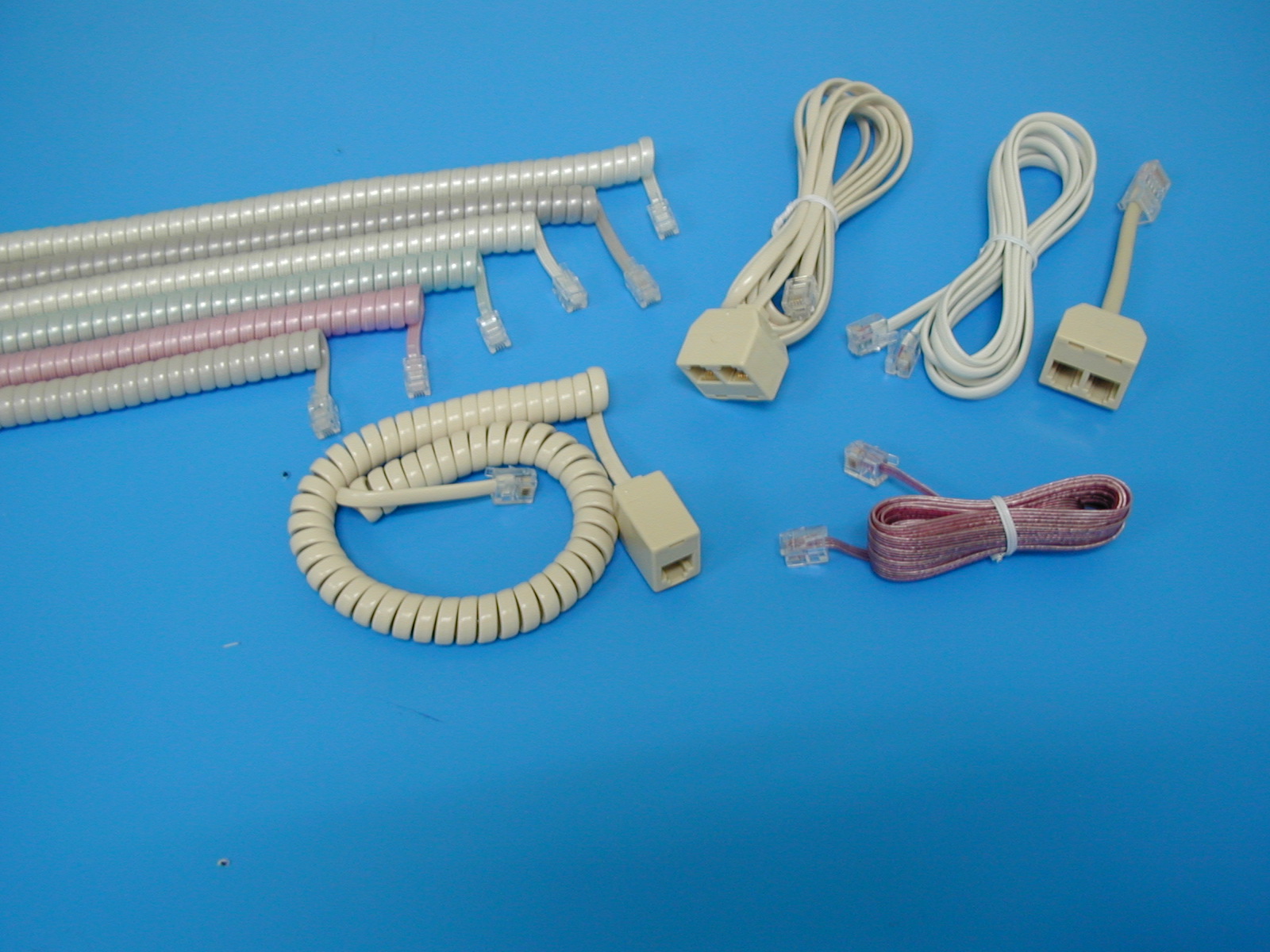

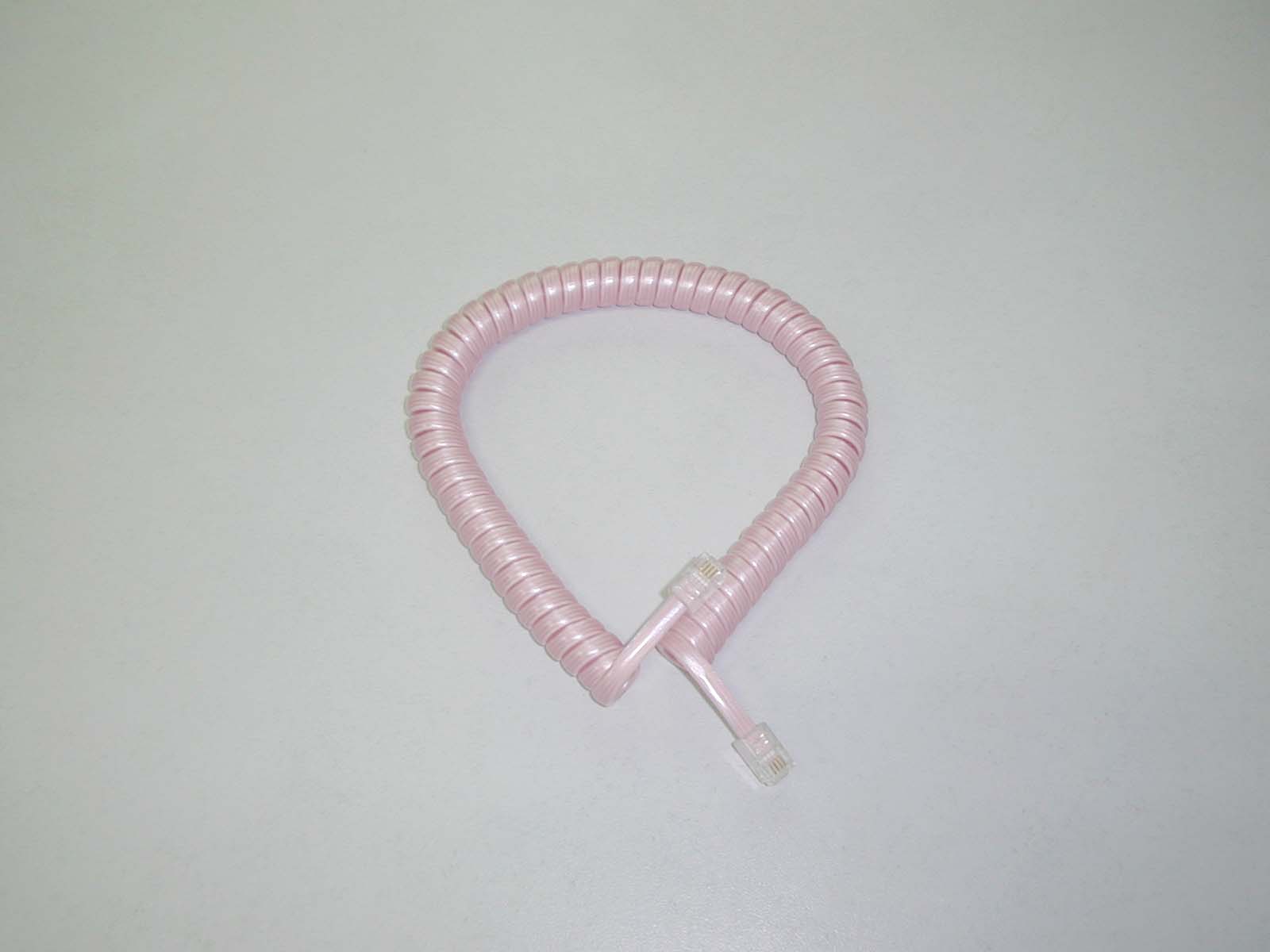

KMHC Series cord assembly:

1.MOD Plug on both ends of cord.

   Standard: 2C 4C 6C 8C 10C

   Plug: Polycarbonate (UL94-VO of UL94-V2)

   Contact: Cu alloy / Au coating (3" , 6" , 15" , 30" , 50")

 2.MOD Plug on one end , option on the other end optional

    Standard : 2C 4C 6C 8C 10C

    Plug : Polycarbonate (94-VO of UL94-2V)

    Contact : Cu alloy/Au coating (3" , 6" , 15", 30" , 50")

    Jack: 2C 4C 6C 8C 10C  / a V variety of terminals are available.
