其他電話零配件

規格說明:　

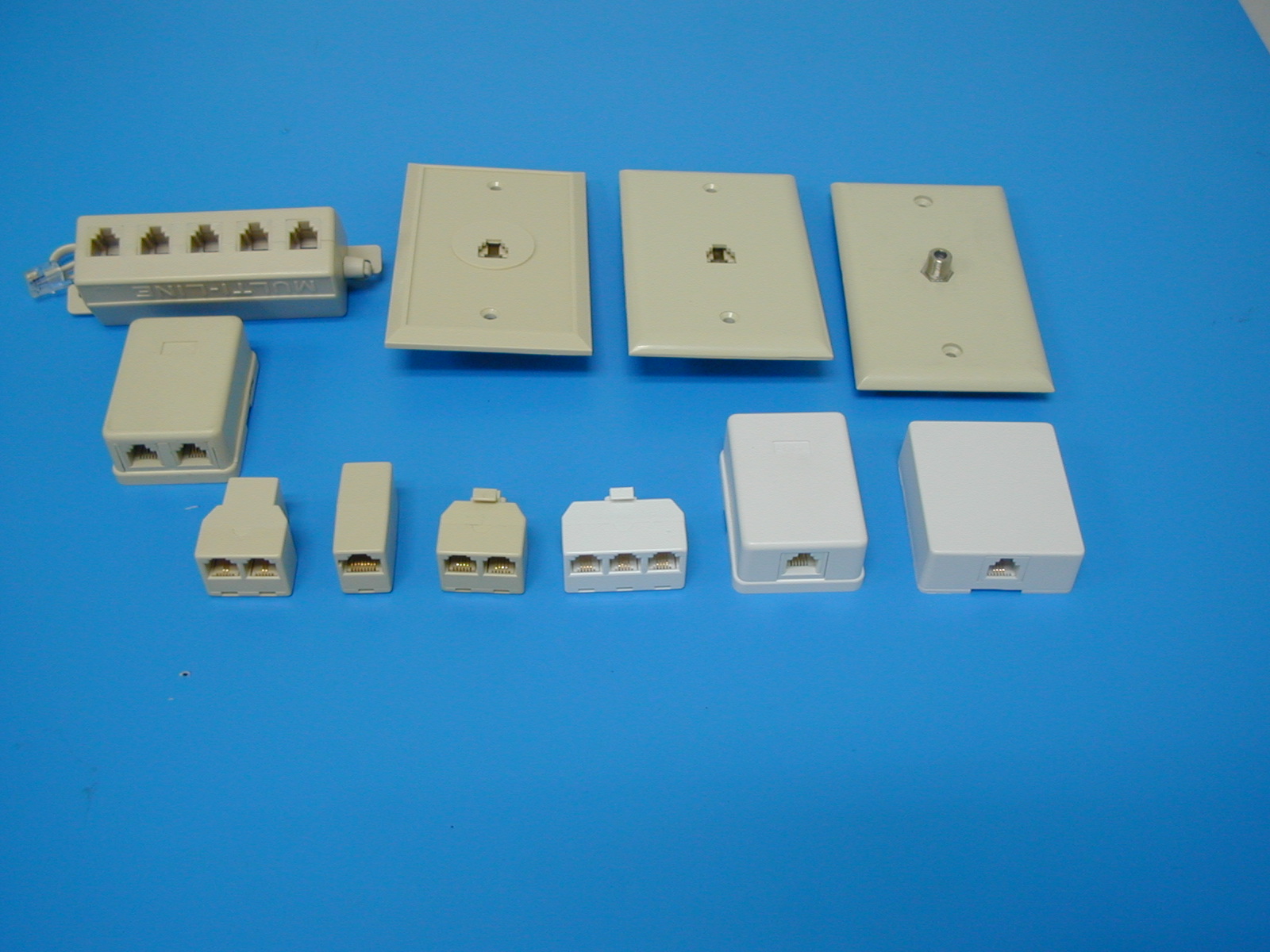

        (1).Modualr Wall Jack.

             Jack Plate with Connection Base ( P.Window in Optional)

         (2).Line Cord with Plug / Jack.

              BT Plug / BT Jack / Dual BT Jack / U.S. Plug / U.S.Jack/Dual

              U.S. Jack.

              4C / 6C / 8C .

              Length: 14' / 25'.

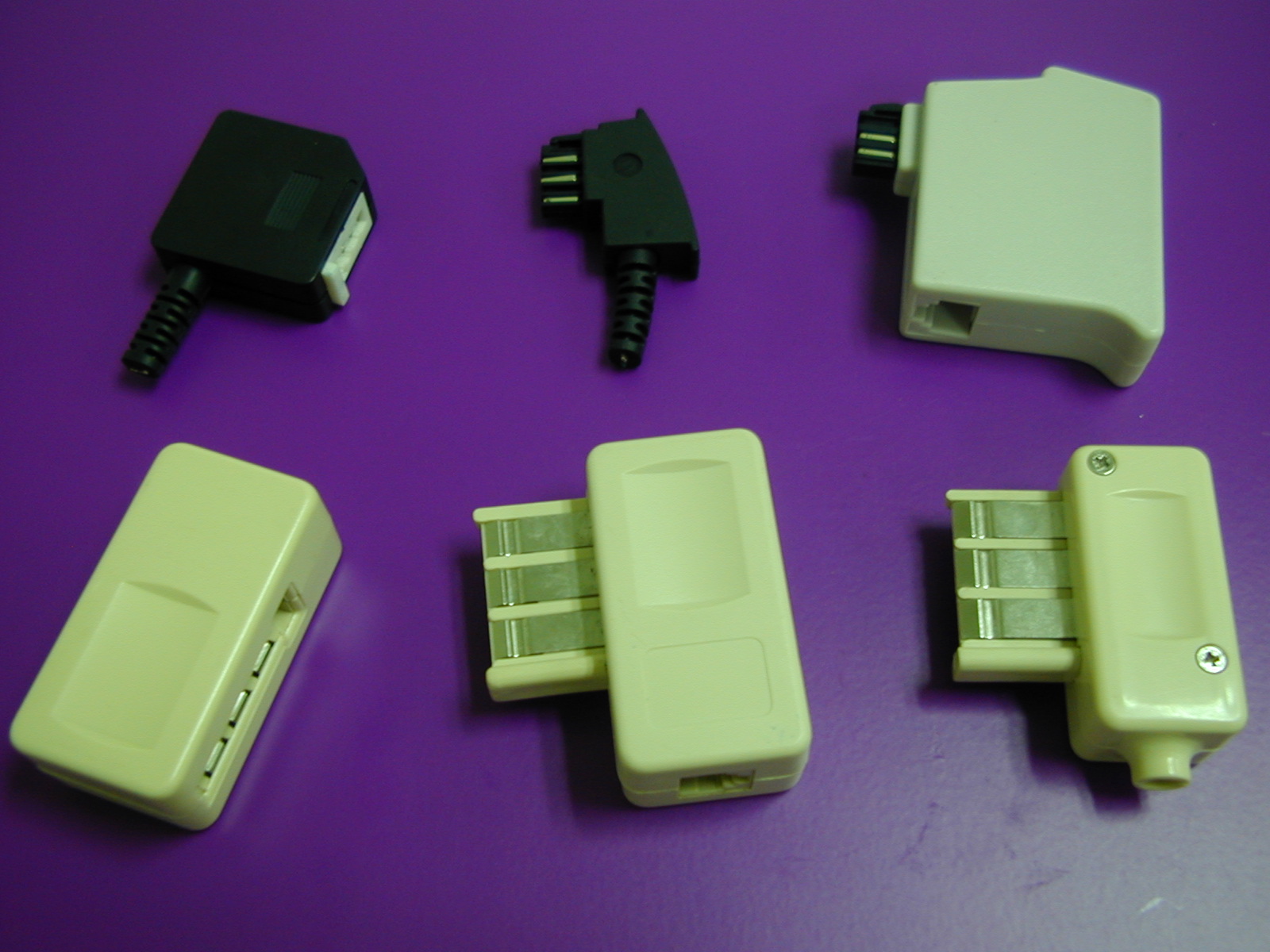

        (3).French Type Plug w/US Plug.

            TAE Telephone Plugs/Jacks in GM 01, GM02, GM03 FR01 ,

            FR03 FR06 Series.

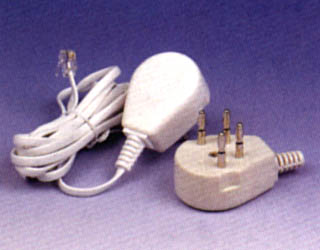

        (4).Italian Type Plug w/US Jack.

            2602 , 2606 , 2605 , 2603 Italian Telephone Plugs with US

            Jacks.

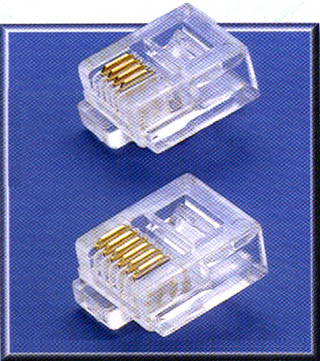

         (5).Modular Plug.

            1040/106/108/1100 Series U.S. Plug for Stranded Cable with

               15U¨ Gold Plated.

            Transparent Colors.

         Material:

            A). Housing : Polycarbonate (pc)UL94V-0 or 94V-2 For U.S.

                                    /UK Plugs.

            B). Gold Blade : Phosphorous Bronze With Hard Gold Plating

                                        Nickel Underplated With Selective Gold

                                        Plating in contact area.

        Electrical Test:

            Current Rating : 2.0 AMPS.

            Dielectric withstanding voltage: 1000 Vrms/60Hz.

            Insulation Resistance: 500M OHM Min.

            Contact Resistance : 20mOHM MAX.

          (6). Extension Cord with Dutch Plug.

          Customer Requested are Available. 　
